How Does A Thermostatic Radiator Valve Work?
Thermostatic Radiator Valves (TRVs) sense the air temperature around them and regulate the flow of water through the radiator which they are fitted to. They do not control the boiler. They should be set at a level that gives you the room temperature you want. These settings may have to be different in each room, and you should set the TRVs to suit each room and then leave them to do their job.
Turning a TRV to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the boiler size and setting, and the radiator size. Turning a TRV to a lower setting will result in the room being controlled at a lower temperature, and saves energy. TRVs need a free flow of air to sense the temperature so they must not be covered by curtains or blocked by furniture.
Functions
ü M30 x 1.5 Universal Type Head to body connection
ü LCD display can be clearly read with the background lighting.
ü Easy for installation
ü Five buttons make it easy to use.
ü PID control
ü 7 days program (4 periods/day)
ü The display shows the set temperature or measured temperature time.
ü Temperature display in degrees Celsius.
Technical Data
- Thermostat operating voltage: 2 x AA1.5 V, alkaline batteries.
- Backup storage: EEPROM
- Switching options: 7 days programming (4 periods/day)
- Frequency: 2.4Ghz
- Temperature settings: 5°C ~ 35°C, in 0.5℃
- Accuracy: ± 1℃
- Control: PID
- Thermostat dimensions:φ55*69mm
- Max Extention: 5.0mm
- Color: White or Anthracite
- IP protection rating: 20.
- Certification: CE，ROHS,RED

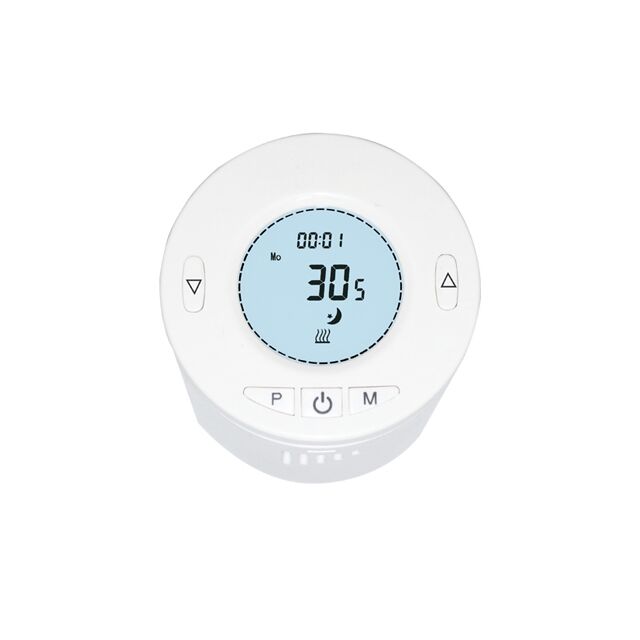

Display & Button
Installation
- Once the battery installed, the TRV display INIL, which means initialization.

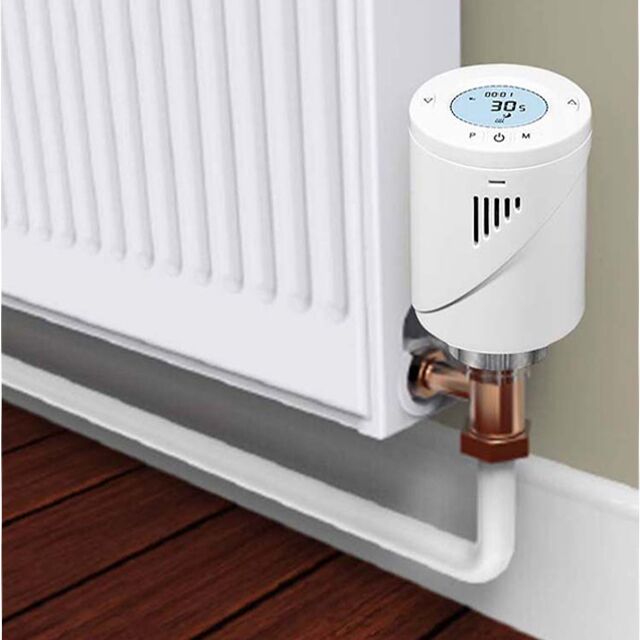

- Install the TRV onto your radiator.
- Then the TRV display AdAP, then press UP button （change 0 to 1), which means the TRV will adapt itself to the stroke of your valve body. To do this, the TRV will now be opened and closed twice to store the end points.
- Mount the Wifi TRV to your radiator
