Description

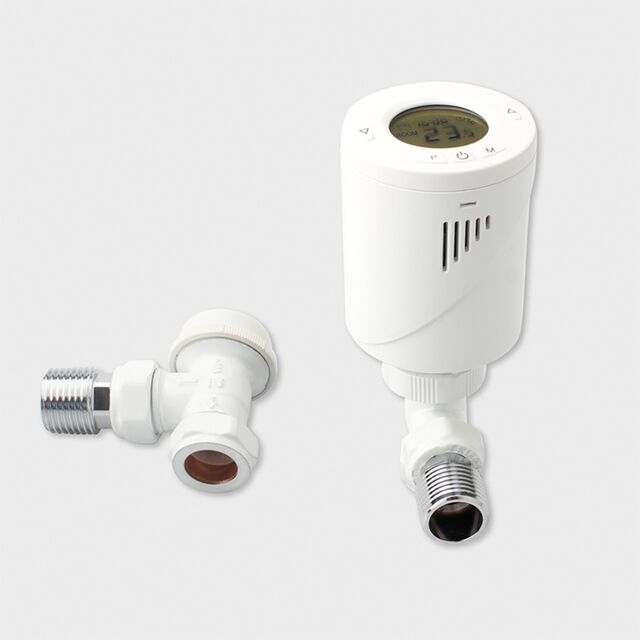

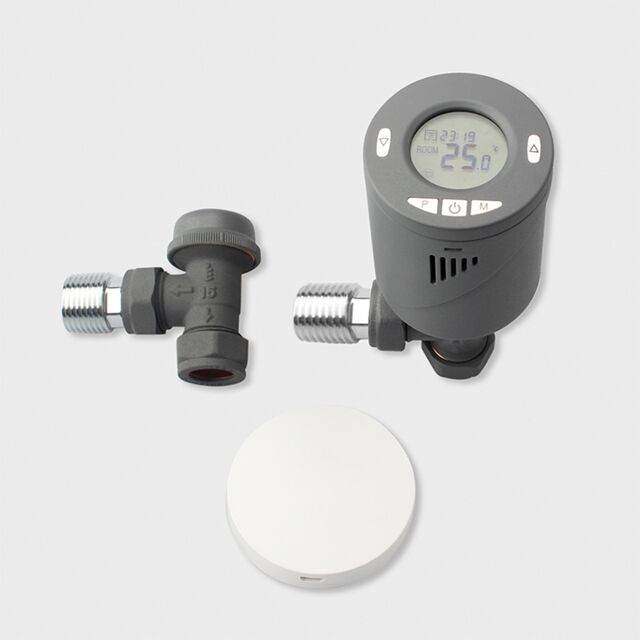

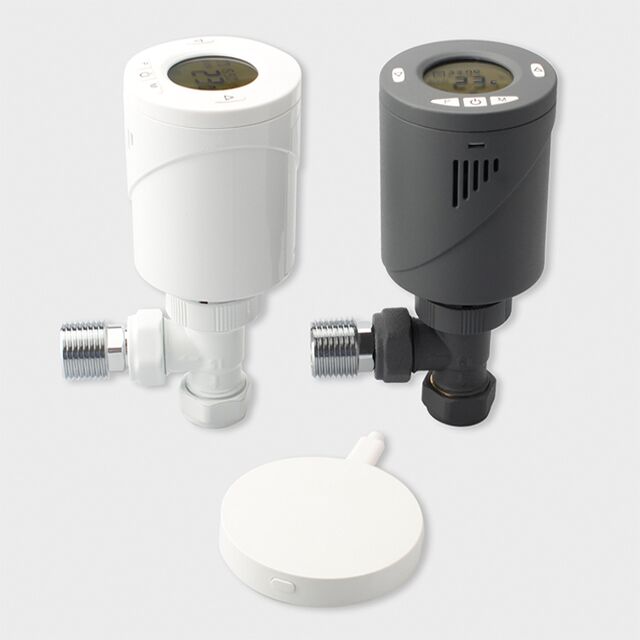

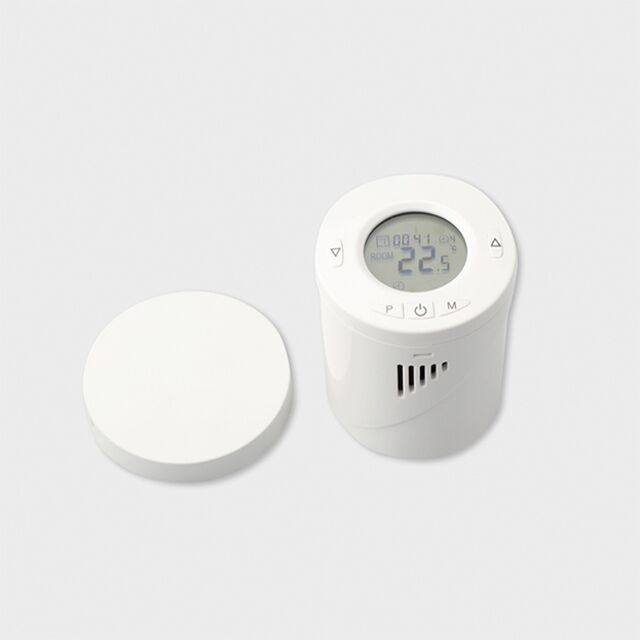

What Is A Smart Radiator Valve& How It Works?
Normally a radiator or towel radiator need a thermostatic radiator valve. Thermostatic Radiator Valves (TRVs) sense the air temperature around them and regulate the flow of water through the radiator which they are fitted to. They do not control the boiler but should be set at a level that gives you the room temperature you want. Except for these functions, a smart radiator valve gives you exact control of every radiator in your home from an app on your phone. It will make you more convenient to set a exact temperature, schedules to heat your radiator or warm your room or turn them off by the phone, whatever you are on home or outside.
With the help of a smart programmable radiator valve, you can control the radiators when you do not need to heat your room and control the heating temperature of individual room. In this way, it will greatly save the energy and help you to save your bills of energy.
Functions
ü M30 x 1.5 Universal Type Head to body connection
ü LCD display can be clearly read with the background lighting.
ü Easy for installation
ü Five buttons make it easy to use.
ü PID control
ü 7 days program (4 periods/day)
ü The display shows the set temperature or measured temperature time.
ü Temperature display in degrees Celsius.
Technical Data
- Thermostat operating voltage: 2 x AA1.5 V, alkaline batteries.
- Backup storage: EEPROM
- Switching options: 7 days programming (4 periods/day)
- Frequency: 2.4Ghz
- Temperature settings: 5°C ~ 35°C, in 0.5℃
- Accuracy: ± 1℃
- Control: PID
- Thermostat dimensions:φ55*69mm
- Max Extention: 5.0mm
- Color: White or Anthracite
- IP protection rating: 20.
- Certification: CE，ROHS,RED
Display & Button
Installation
- Once the battery installed, the TRV display INIL, which means initialization.
- Install the TRV onto your radiator.
- Then the TRV display AdAP, then press UP button （change 0 to 1), which means the TRV will adapt itself to the stroke of your valve body. To do this, the TRV will now be opened and closed twice to store the end points.
- Mount the Wifi TRV to your radiator
