Description

 What Is A Thermostatic Integrated H Block Radiator Valve?

A Thermostatic integrated H block radiator valves is one kind of self-regulating valves( also called TRV in short), fitted to hot water heating system radiator with a 50mm middle connections, to control the temperature of a room by changing the flow of hot water to the radiator.

It includes a thermostatic head and a H block radiator valve. The user turns the thermostatic head to the required temperature value. The inside sensor element of thermostatic head sense the room’s temperature and adjust the flow of hot water to the desired ambient temperature.

 How Does A Thermostatic Radiator Valve Works?

The sensor element of BEIJINSI thermostats consist of a liquid filled metal capsule with an immersed below and integral push rod. A temperature fluctuation leads to an alteration of volume of the liquid which entails a length modification of the immersed below. Then the valve is closed and opened by the push rod.

When the room temperature exceeds the set temperature, the liquid sensor element in the thermostatic head expands and increases it’s volume. It pushes the valve’s stem to turn down the valve, to reduce the hot water flow of the radiator and make the room temperature reach the set temperature. When the room temperature is lower than the set temperature, the liquid sensor element shrinks and the volume decreases. The returned spring in the valve core pushes back the valve stem to open the valve and increase the hot water flow of the radiator until the room temperature reaches the set value.

With these energy efficient trv valves, the temperature in each room of the home is easily controlled, reducing energy usage and saving money by avoiding overheating commonly caused by manual valves. A compression connection and PTFE seal are recommended for installation.

 Where is a thermostatic radiator valve installed?

It is recommended to fit one connection side of TRV to the inlet pipe– the water flow pipe, and another connection side to be mounted with the towel rail or radiator. Can we fit it to the return pipe? If you do this way, you would later find that a noisy, vibrating sound comes out when the water comes through.

 Product Feature

>>  1 model, dual use for straight 180° and angled 90° installation

>>  2 kinds of connection: 15MM&16MM

• 15mm connetion for copper pipe and 16mm connection for PEX pipe
• The end user can exchange it flexibly according to their need

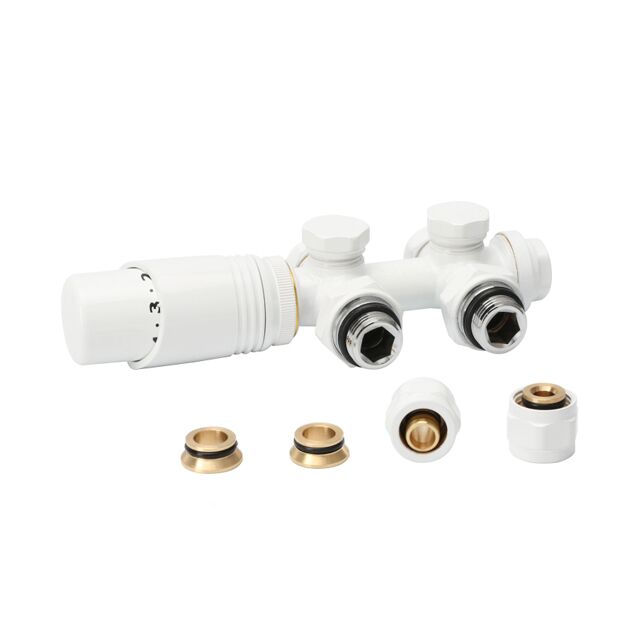

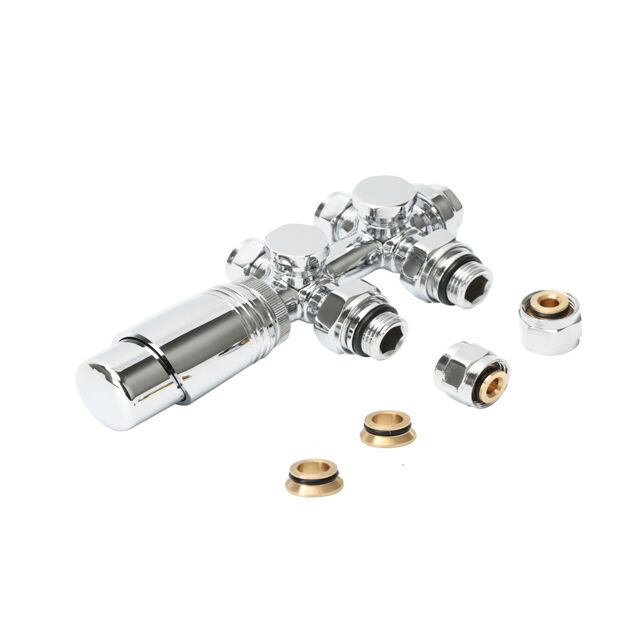

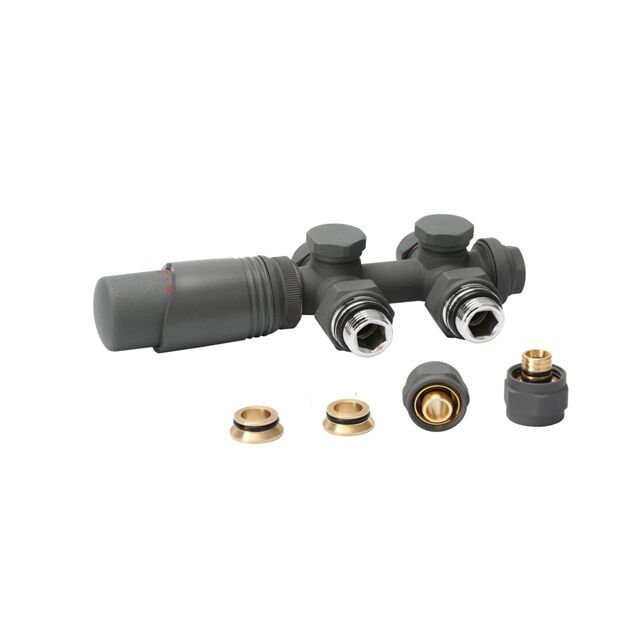

>>   3 colors for more match options-Chrome/White/Anthracite

>>   Forging process, 100% no leakage

• Compared with market similar casting process products which could have high leakge rate after using a  period of  time, BEIJINSI has fund the solution to overcome the forging process difficulties, and completely  eliminate the   possiblity of leakage, make the quality more reliable.

>>  Sensitive Thermostat Head according to EN215 make the temperature change simple, easy

>>  Adopts Germany imported sensor element, which can detect the temperature change sensitive, lifetime is longer.

>>  The Japan imported stainless steel spring makes the resilience better, and lifetime can  reach to 100000 times.

>>  Professional engineered designed and produced, to give out excellent and reliable performance.

>>  Test according to EN215 standard
