Description

 What Is A Thermostatic Mixing Valve?

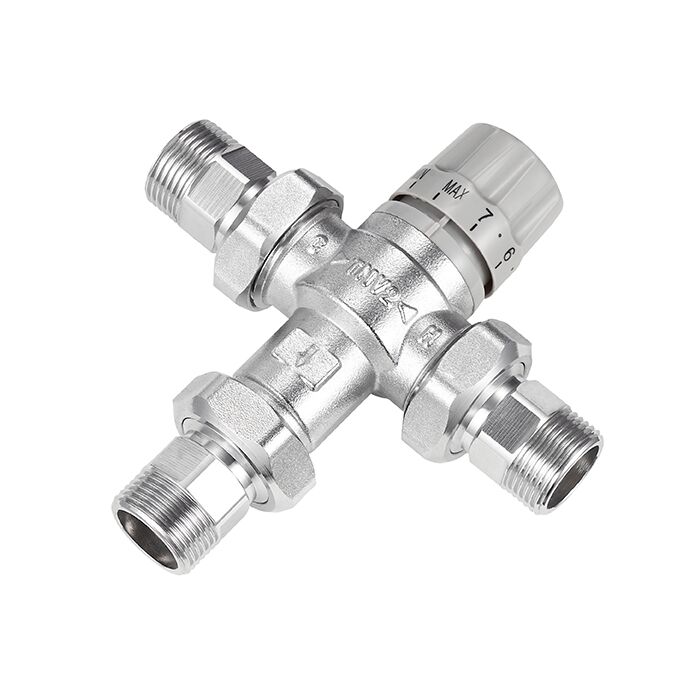

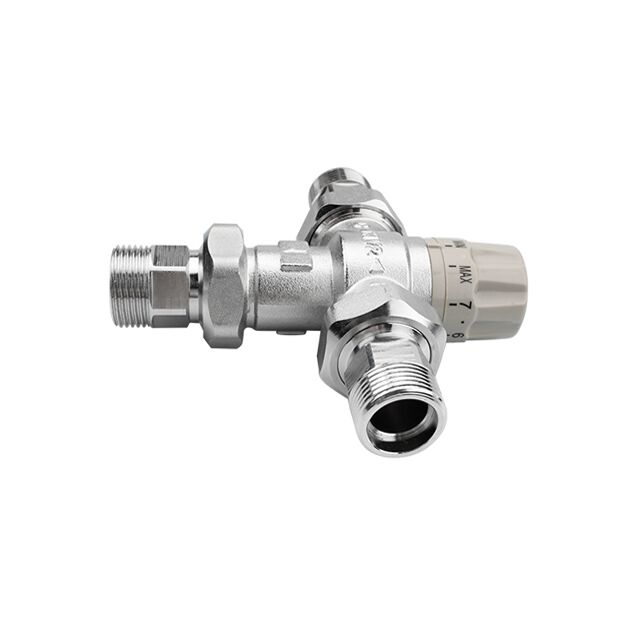

Thermostatic Mixing Valve is one kind of valves which is mainly used in electric water heaters or solar water heaters system. This valve can adjust the outlet water temperature to be the set value by limiting and mixing the amount of inlet hot water or cold water. It provides safety assurance by preventing high temperature when people is washing hands, taking shower or bathing.

They are designed especially for being used at a single unit, wash hand basins, bathtubs and showers. Thermostatic Mixing Valves are mainly used within the Health Care, School and Residential Care services sector in order to maintain temperature without the risk of scalding.

 Product Feature

>>  Forging process, 100% no leakage

>>  Rapid failsafe on either hot or cold supply failure

>>  Extended mix temperature range : 30℃-55℃

>>  Imported sensor element, delivers stable mixed water temperature

>>  Tested according to European most strict TMV3 standards

>>  High precision machining, professional engineered designed and produced, to give out excellent performance.

 Knob Temperature

  Installation

• All installations should be carried out by a professional plumber.
• Before installation, flush the pipe’s impurity to ensure the system proper operation.

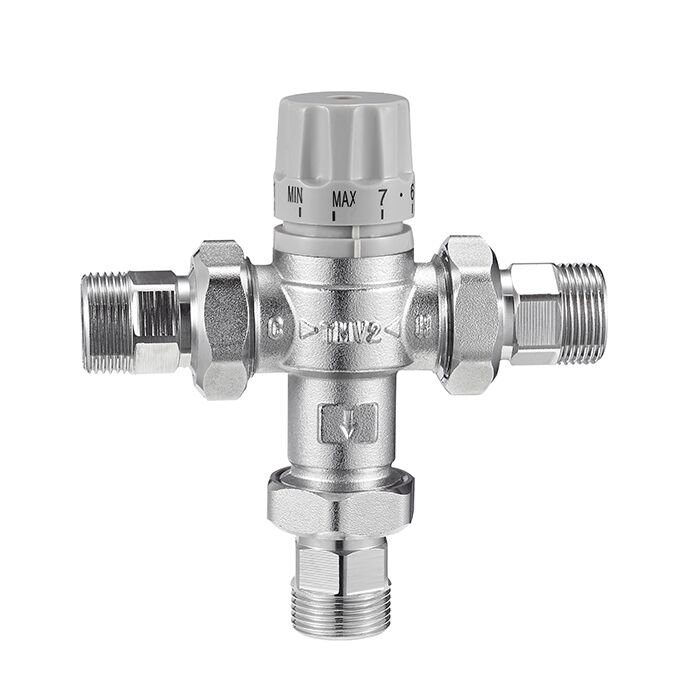

• Install the pipes according to the marks on valve body. For example, connect the hot water pipe with the inlet side marked H, cold water pipe to be connected with the inlet side marked C. The last side is connected with the outlet pipe.

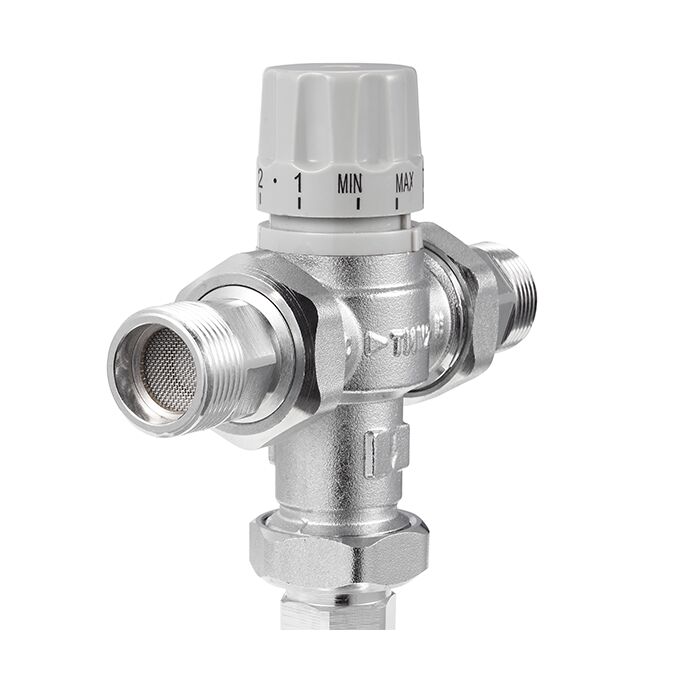

• Set the outlet temperature you want by turning on the hand wheel. The 1 means lowest temperature 30℃，7 means the highest temperature 55℃. You can adjust the temperature at different value.
• When inlets pressure is not the same, the external check valves will start to prevent cross-flow of hot&cold water
• Attention: If the ratio between two inlets is too big, one flow-limiting valve should be fixed at the side of higher pressure.
