What A Thermostatic Shower Mixer Valve and Where It Is Used?
Thermostatic Mixer Valve is the perfect addition to any water heating system. This high-quality mixer valve is designed to adjust the outlet water temperature by limiting and mixing the amount of inlet hot water or cold water, ensuring a comfortable and safe shower experience every time.

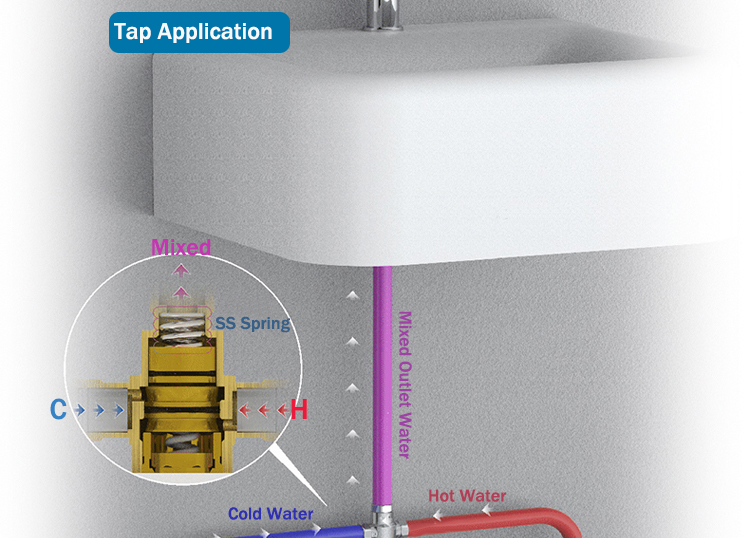

A sensor element is placed at the mixed outlet of the thermostatic mixer valve. It drives the movement of the valve’s core to block or open the inlet port of the cold and hot water. When the temperature is set by adjusting the top knob, the proportion of cold and hot water entering the outlet can be changed accordingly, so that the outlet water temperature remains constant value.
Crafted from durable brass materials, this thermostatic mixer valve is built to last and can easily be integrated into electric or solar water heaters. With its precise temperature control, you can enjoy a soothing and consistent water temperature without worrying about sudden temperature changes. Our mixer valve is a must-have for any health-conscious individual looking to elevate their shower experience.
Product Feature
>> Forging process, 100% no leakage
>> Rapid failsafe on either hot or cold supply failure
>> Extended mix temperature range : 30℃-55℃
>> Imported sensor element, delivers stable mixed water temperature
>> Tested according to European most strict TMV3 standards
>> High precision machining, professional engineered designed and produced, to give out excellent performance.
Installation Tips
- All installations should be carried out by a professional plumber.
- Before installation, flush the pipe’s impurity to ensure the system proper operation.
- Install the pipes according to the marks on valve body. For example, connect the hot water pipe with the inlet side marked H, cold water pipe to be connected with the inlet side marked C. The last side is connected with the outlet pipe.
- Set the outlet temperature you want by turning on the hand wheel. The 1 means lowest temperature 30℃，7 means the highest temperature 55℃. You can adjust the temperature at different value.
- When inlets pressure is not the same, the external check valves will start to prevent cross-flow of hot&cold water
- Attention: If the ratio between two inlets is too big, one flow-limiting valve should be fixed at the side of higher pressure.
